Description

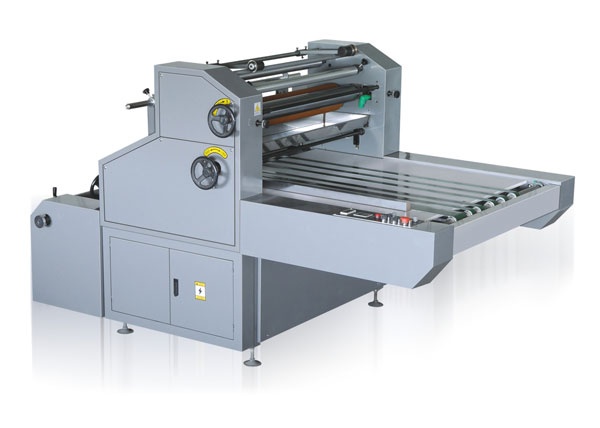

SFM serial water-base laminator is a well-designed laminating machine which adopts water-base conservational glue and B0PP or PET film for lamination. The machine adopts imported frequency converterfor infinitely variable speed, and is also furnished with I.R. Drying tubes, auto film cutter, paper-out protector, automatic glue supplying system, film perforating device and the trolley for quick winding. It has the features of high speed and energy conservation, and is widely applied for the lamination of books, wall calendar, hand bag, gift box and wine packing box etc.

Main technical variables
Model	SFM-750	SFM-1000	SFM-1200
Maximum width	650MM	950mm	1150mm
Maximum speed	0~50(m/min)	0~50(m/min)	0~50(m/min)
Motor power	1.5(kw)	1.5(kw)	1.5(kw)
Weight	1300kg	1500kg	1700kg
Overall Dimensions	2670×1250×1500mm	2670×1550×1500mm	3000×1800×1500mm
Power	220V 50HZ	220V 50HZ	220V 50HZ
