Products > Laminating Machine > Flute Laminating Machine > GTFM-1100N/1300N/1450N/1600N Semi-Automatic Flute Laminating Machine

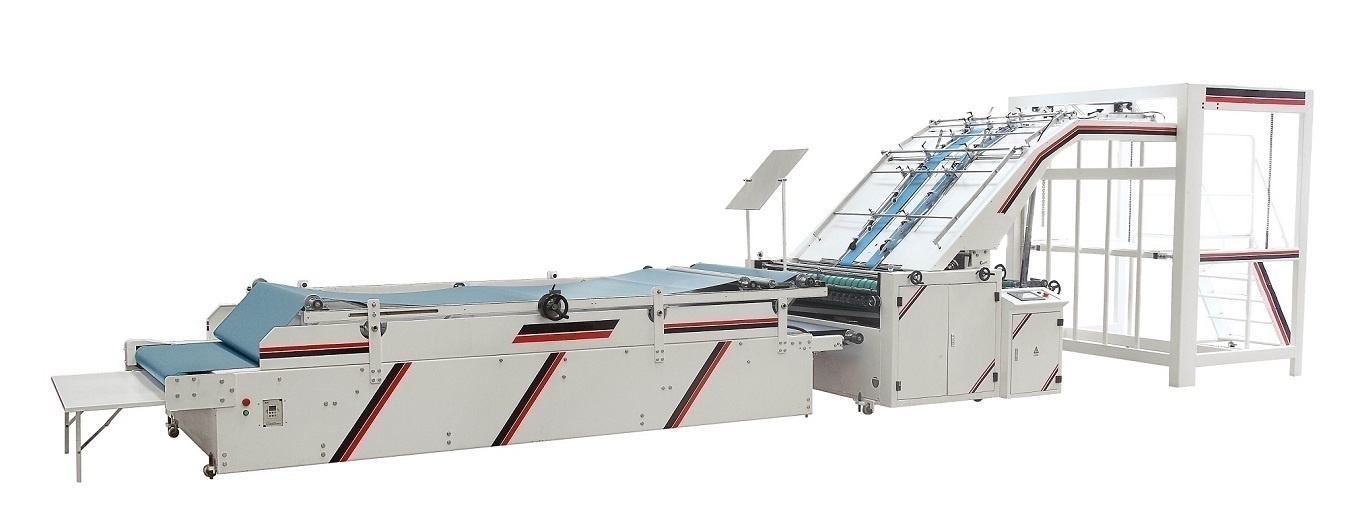

Product name : GTFM-1100N/1300N/1450N/1600N Semi-Automatic Flute Laminating Machine
 Enlarge Image                   Back
←[Previous Product]              [Next Product]→


Details:
 Machine Features

1. The face paper can be piled to 1.5m at time, during paper feeding the paper pile automatically raise, which makes the paper feeding easier , more efficient.

2. The bottom paper automatically fed by air suction, able to have an automatic continuous tracking according to the feeding speed of face paper.

3. New concept of front guide positioning, high precise; the bottom paper never pulls ahead; it can be adjusted if the face paper pulls ahead.

4. The whole machine with touch PLC system, the glue can be cycle used, which saves more than half of the glue compared with manual operation.

5. The liner speed of metering roller is scientifically designed, which ensures a uniform glue supply, meanwhile avoids glue rejection while the machine operated in a high speed.

6. The pressures of  all pressing rollers are unilaterally adjusted via worms and gears, easy and quick.

7. Water source cleaned with the lamination of 175g-500g printed face paper and flute A/B/C/D/E/F; and the lamination of 175g-500g printed face paper and paprboard.

Model GT FM-1100N GT FM-1300N GT FM-1450N GT FM-1600N
Max sheet size    (W*L mm) 1100×1100 1300×1100 1450×1100 1600×1300
Min sheet size (mm) 350×350 350×350 350×350 350×350
Speed (m/min) 0~90 0~90 0~90 0~90
Voltage  380V 380V 380V 380V
Frequency  50HZ 50HZ 50HZ 50HZ
Total power  7.5KW 7.5KW 8.5KW 9.5KW
Measurement  11000×1700×2600(MM) 11000×1900×2600(MM) 11000×2050×2600(MM) 11000×2200×2600(MM)
Weight 4200kgs 5200kgs 6200kgs 7200kgs
